کویل کندانسور

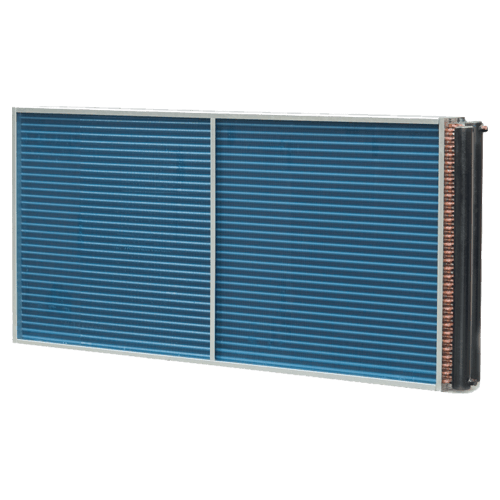

۱. کویل کندانسور چیلر هوا خنک

این نوع کویل در چیلرهای هوا خنک استفاده می‌شود و توسط جریان هوای محیط، گرمای مبرد را دفع می‌کند. معمولاً در این کویل‌ها از لوله‌های مسی و فین‌های آلومینیومی برای افزایش سطح انتقال حرارت استفاده می‌شود.

ویژگی‌ها:

  • مقاومت بالا در برابر شرایط محیطی (رطوبت، گرد و غبار، آلودگی هوا)

  • طراحی بهینه برای دفع سریع حرارت

  • قابلیت کارکرد در دماهای بالای محیطی

  • نصب در واحدهای خارجی چیلرهای هوا خنک

Condenser Coil

The condenser coil is a critical component in refrigeration and HVAC systems, responsible for releasing heat from the refrigerant into the ambient environment. During the refrigerant compression cycle, the condenser coil cools the hot refrigerant gas and condenses it into liquid form.
Depending on the system design and installation needs, condenser coils come in several types

 Air-Cooled Chiller Condenser Coil

This coil type is used in air-cooled chillers, where ambient air removes heat from the refrigerant. Copper tubes combined with aluminum fins are commonly used to maximize heat transfer surface area

:Features

  • High resistance to environmental factors (humidity, dust, pollution)

  • Optimized design for rapid heat rejection

  • Suitable for high ambient temperature operations

  • Installed in the outdoor units of air-cooled chillers

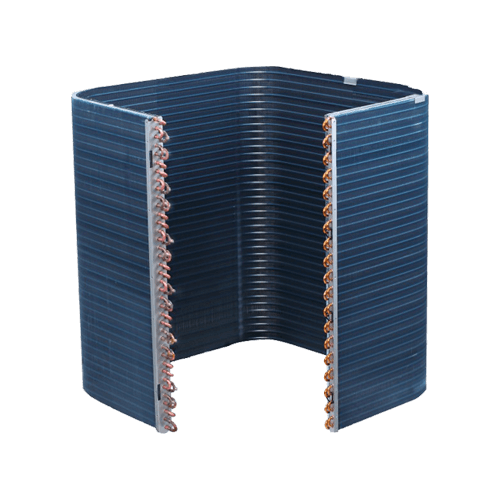

کویل کندانسور خم

کویل کندانسور خم با طراحی انعطاف‌پذیر و شکل‌دهی خاص به لوله‌ها ساخته می‌شود. این نوع کویل در دستگاه‌هایی استفاده می‌شود که محدودیت فضایی یا نیاز به آرایش فشرده دارند. خم‌کاری دقیق، تبادل حرارتی مؤثر و مقاومت مکانیکی بالایی فراهم می‌کند.

ویژگی‌ها:

  • طراحی سفارشی بر اساس ابعاد و فرم دستگاه

  • افزایش تراکم سطح انتقال حرارت در فضای محدود

  • مناسب برای دستگاه‌های صنعتی، تهویه مطبوع خاص و تجهیزات با محدودیت فضا

Bent Condenser Coil

Bent condenser coils are manufactured by precisely shaping copper tubes to achieve compact and flexible designs. They are ideal for systems with spatial constraints and special configurations, offering effective heat exchange and mechanical durability

:Features

  • Custom designs according to device dimensions and form

  • Increased heat transfer surface density in limited spaces

  • Ideal for industrial HVAC systems and compact refrigeration equipment

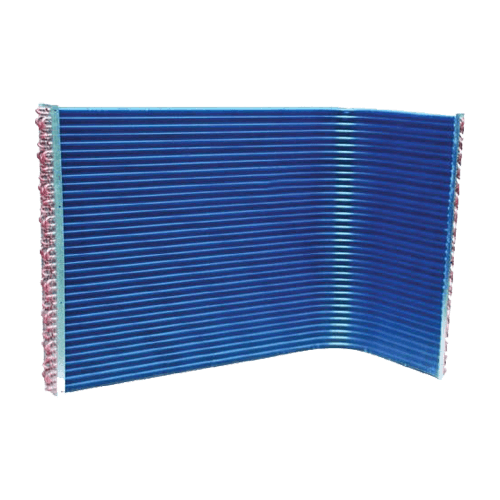

۳. کویل کندانسور داکت اسپلیت

این کویل در یونیت خارجی داکت اسپلیت‌ها قرار می‌گیرد و وظیفه خنک‌سازی مبرد را برعهده دارد. طراحی این کویل‌ها به گونه‌ای است که حداکثر بازدهی حرارتی با کمترین مصرف انرژی فراهم شود.

ویژگی‌ها:

  • استفاده از فین‌های موج‌دار برای بهبود جریان هوا

  • طراحی مقاوم در برابر خوردگی و شرایط آب و هوایی متغیر

  • قابلیت ارائه با روکش ضد خوردگی (کوتینگ) برای مناطق با رطوبت یا آلودگی بالا

Ducted Split Condenser Coil

This coil is installed in the outdoor unit of ducted split systems and plays a vital role in cooling the refrigerant efficiently. They are engineered to maximize thermal performance while minimizing energy consumption

:Features

  • Corrugated fins for improved airflow distribution

  • Durable against corrosion and varying weather conditions

  • Optional anti-corrosion coatings for humid or polluted environments
